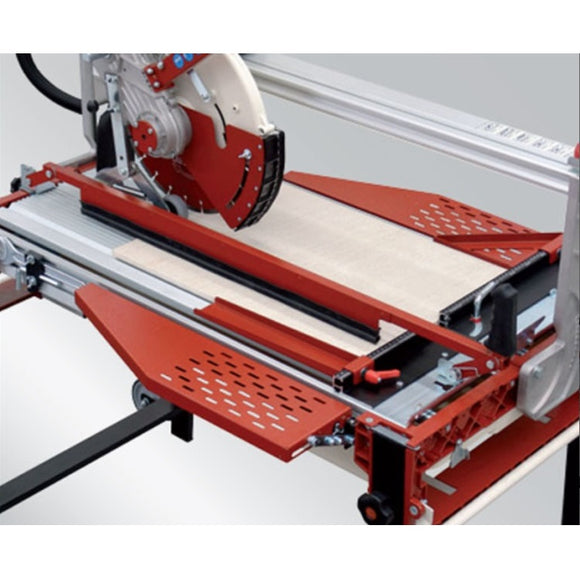

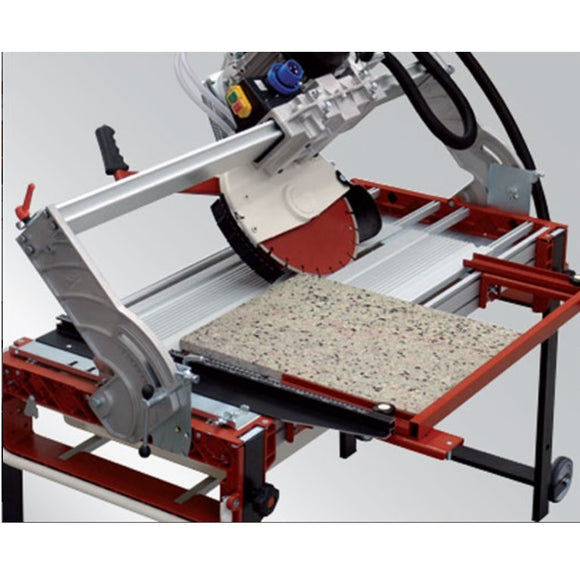

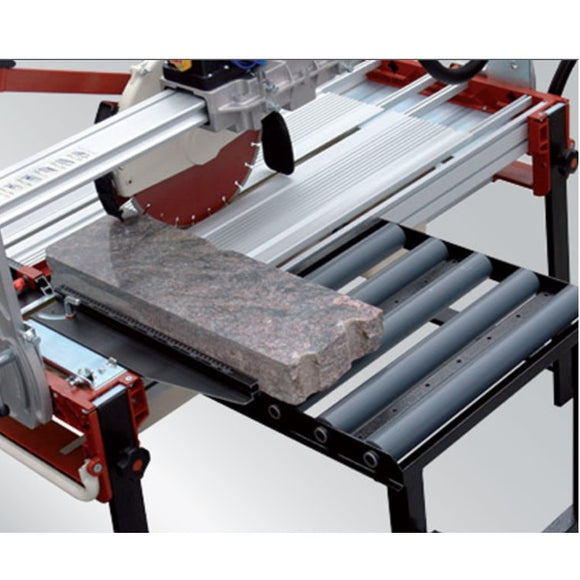

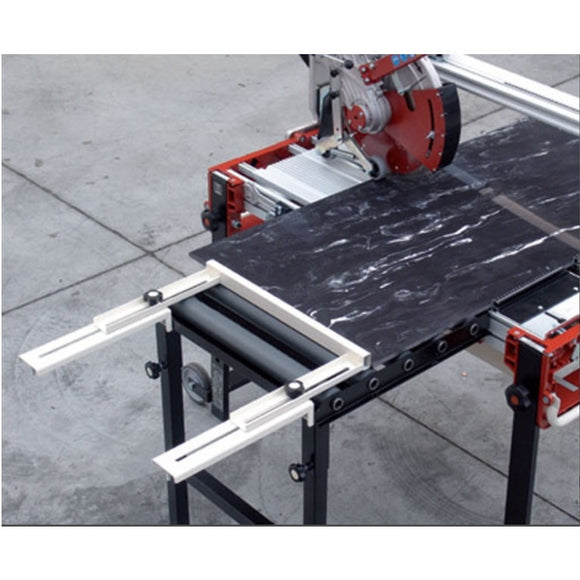

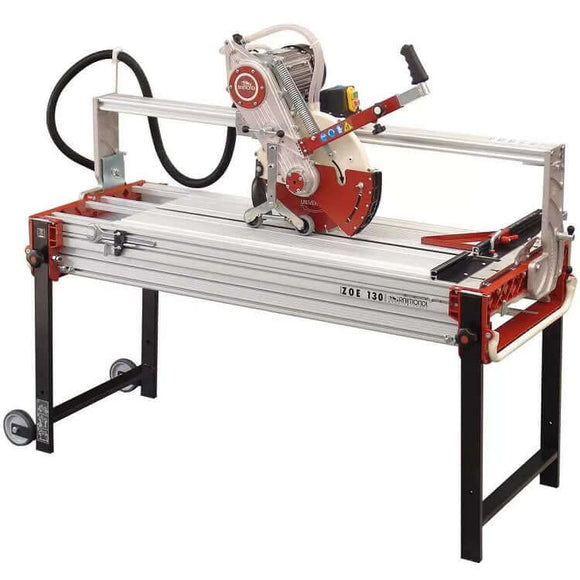

51-inch Raimondi Zipper Advanced Tile Saw is certified Italian quality that can be used on porcelain tile, ceramics, limestone, granite, glass, brick and pool coping! Sliding motor assembly with cast aluminum housing. 51-inch Raimondi Zipper Advance Saw includes a 14-inch blade; Dressing stone; Square; Wrench Kit and user manual.
Motor (110 volts) with 2.2 HP at 3,360 RPM Belt Driven.
Four (4) adjustable pulleys run on an extruded aluminum rail.
Size 68" x 27" x 37"
Weight 216 lbs.
Arbor size 1"
Blade size capability 12" or 14"
Performs rip cut of 51", diagonal cut up to 35" x 35".
51" Raimondi Zipper Advance Saw able to plunge cut.
Adjustable 4-3/4" cutting depth
Tilting motor assembly for bevel cuts (45°).
Polypropylene water basin (10 gals.).
Telescopic legs provided with a safety device, one-person set-up.
Pivoting blade guard that remains parallel with tile to ensure maximum 4-3/4" cutting depth.
Water pump with two (2) jet nozzles for blade cooling.
MATERIALS Cast and extruded aluminum framework.
Free Shipping to commercial address or local Freight Terminal.
